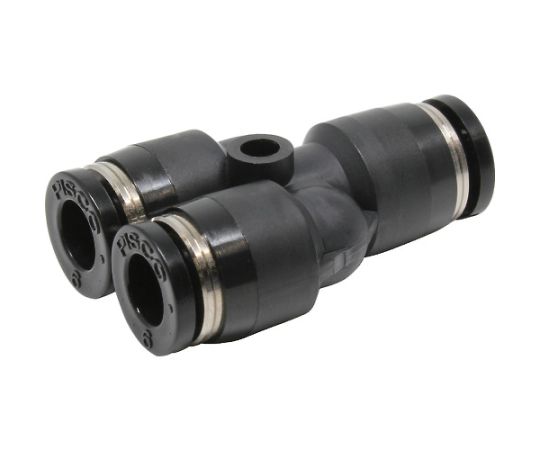

Tube fitting Union Y PY6 1 piece

Depending on the model, the tube exit angle can be changed after installation. Depending on the conditions, it may be possible to allow water to flow. A wide range of models are available to accommodate all types of pneumatic piping. Compatible tube outer diameter D (mm): 6 x 6 x 6 Maximum operating pressure (MPa): 1 Fluids used: Air, water (conditions apply) Operating temperature range: 0 to 60°C (no freezing) Maximum operating pressure: 1MPa Vacuum pressure used: -100kPa Material/Finish: Body/Brass + electroless nickel plating + polybutylene terephthalate (PBT), Sealing rubber/Nitrile rubber (NBR) Country of Origin: Japan Code number: 290-8573
