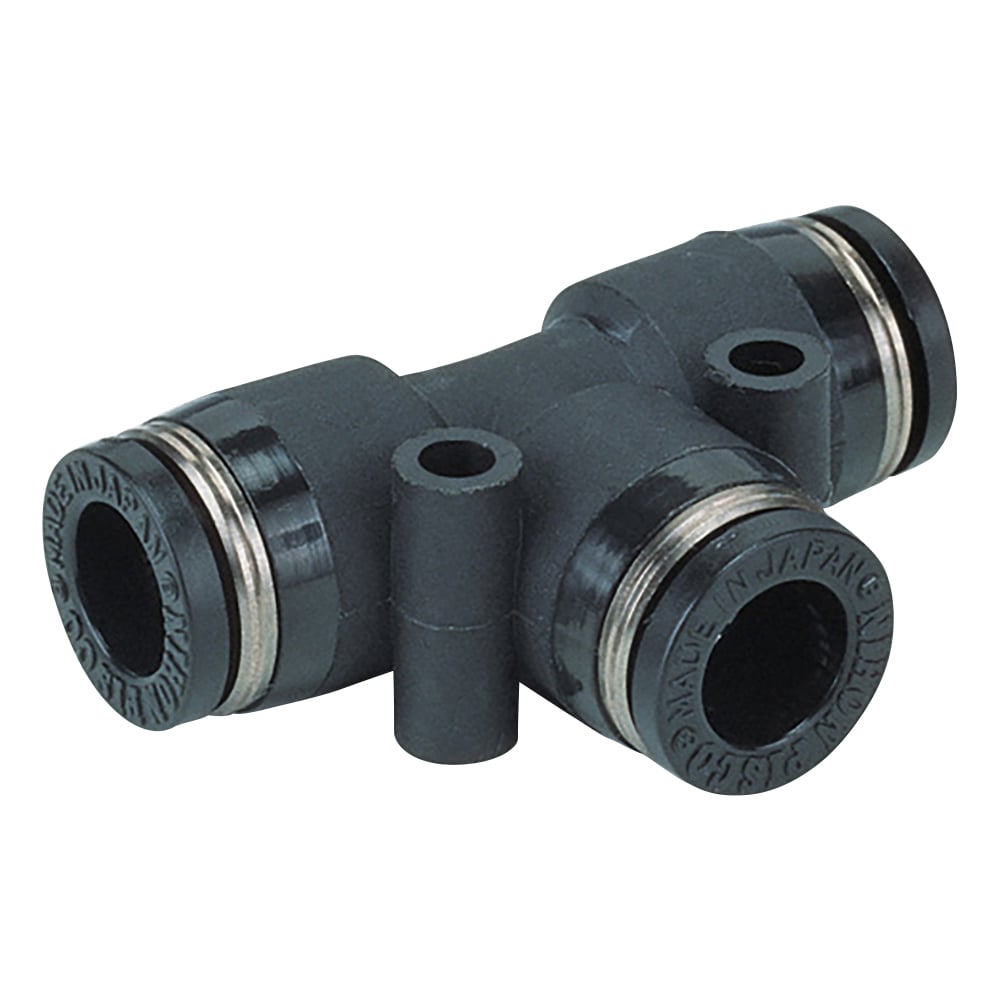

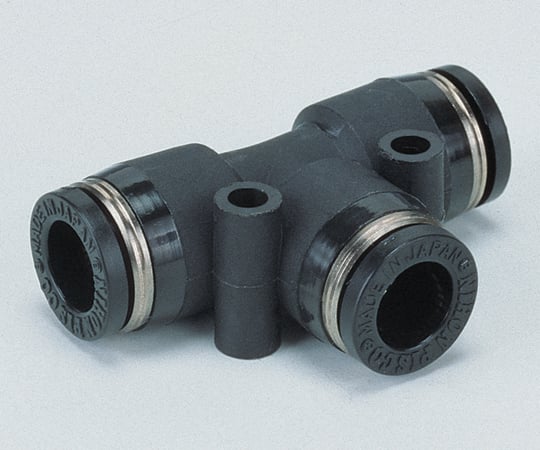

Model number: PE4
Material: Body: PBT (polybutylene terephthalate), Metal parts: Brass (electroless nickel plating), O-ring: NBR (nitrile rubber), Release ring: POM (polyacetal)
Fluids used: Air and water
Vacuum pressure used: -100kPa
Maximum operating pressure: 1.0MPa
Operating temperature range: 0 to 60°C
Type: Tee
Applicable tube outer diameter: φ4mm
When using water, keep surge pressure below the maximum operating pressure and use an insert ring (sold separately).
RoHS2 (EU)2015/863 compliant [About RoHS]
