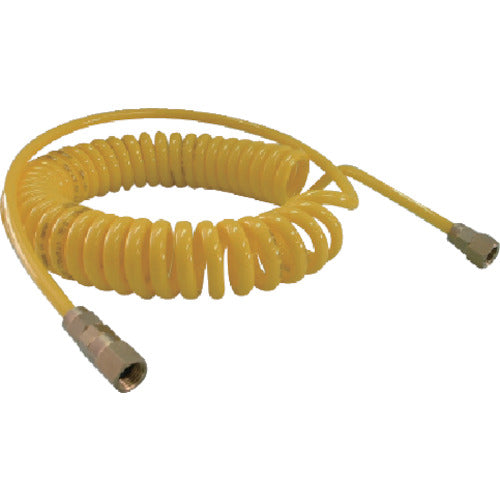

Chiyoda Yellow Line Series 10mm / Usage range 6m Yellow TPS-1008-0105Y 1 piece

Catalog number: TPS-1008-0105Y Features: ●Uses water-resistant polyurethane. ●Prevents problems caused by drains, etc. ●Available in a wide variety of sizes and types. ●Custom-made products with different dimensions and colors are also available. (10 colors in total, including yellow) ●TE tube specifications provide the best balance of flexibility and resilience. ●Available in a wide variety of tube sizes and usage ranges. ●Custom-made orders can be made for a single tube, including changes to fittings (couplings, thread sizes, etc.), length of straight section, and color changes. ●Excellent oil resistance makes it ideal for air piping in factories. Applications: ●For various air piping and air tools. Specifications: ● Coil diameter (mm): 52 ● Color: Yellow ● Hose inner diameter x outer diameter (mm): 6.5 x 10 ● Usage range (m): 6 ● Total length (mm): 1235 ● Coil length (mm): 635 ● Outer diameter (mm): 10 ● Inner diameter (mm): 6.5 ● Maximum operating pressure (MPa): 0.8 ● Operating temperature range (℃): -5 to 60 ● Fluid used: Air ● Fitting: G1/4 ● Fluid temperature (℃): -5 to 60℃ ● Operating pressure: 0.8MPa ● Connection partner: Hose fitting ● Maximum operating pressure: 0.8MPa ● Usage range (mm): 6000 Material / Finish: ● Body: Polyurethane resin ● Fitting: Brass
