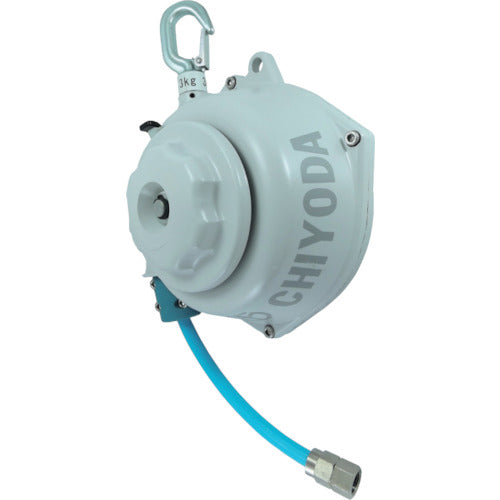

Chiyoda Air Reel Mega Hose Balancer Tool up to 3kg MHB-83 1 unit

Catalogue number: MHB-83 Features: ●By adopting the mega hose, a significant increase in flow rate has been achieved in a compact body compared to conventional models. ●The body is made of aluminum to improve impact durability. ●The spring torque is adjusted by using a handle operation method, and no tools are required. Applications: ●Balancer for air tools. Specifications: ●Hose inner diameter x outer diameter (mm): 8 x 10.5 ●Total hose length (m): 1.3 ●Fluid used: Air ●Primary side thread: R3/8 ●Secondary side thread: Rc1/4 ●Hanging allowable range (N): 9.8 to 29.4 ●Hose used: MH-8 ●Capacity (kg): 1 to 3 ●Operating pressure: 1 MPa ●Fluid temperature: -5 to 60°C Materials/Finish: ●Hose: Polyurethane
