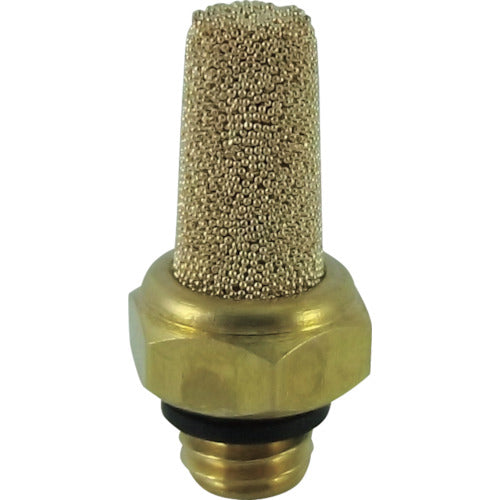

Chiyoda silencer brass CSB type M5X0.8 CSB-M5 1 piece
Chiyoda silencer brass CSB type M5X0.8 CSB-M5 1 piece
Regular price
¥330
Regular price
Sale price
¥330
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalogue number: CSB-M5 Features: ●Compact design allows installation in narrow spaces. ●Made of the same material, no need to separate waste when disposing of the unit. Specifications: ●Volume reduction (dB): 20 or more ●Effective cross-sectional area (mm2): 5 ●Connection diameter: M5 x 0.8 ●Total length (mm): 18.0 ●Operating pressure (MPa): 1 ●Operating temperature (℃): 1.6-150 ●Operating fluid: Air ●Processing air flow rate (m3/min): 0.4 ●Operating pressure: 1MPa ●Fluid temperature: 5-150℃ ●Maximum temperature range: 1.6-150℃ ●Guaranteed pressure resistance: 2MPa Materials/Finish: ●Body: Brass ●Element: Sintered brass
