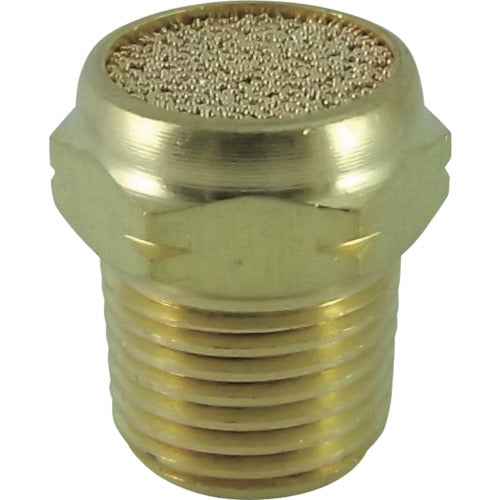

Chiyoda silencer brass CSB-F type (Breather vent) R1/8 CSB-01F 1 piece

Catalog number: CSB-01F Features: ● For exhausting small valves and pilot air, and as a space-saving muffler, it does not take up much space. It is also ideal for pressure relief purposes. Applications: ● Air circuits. Specifications: ● Volume reduction (dB): 20 or more ● Effective cross-sectional area (mm2): 5.0 ● Connection diameter: R1/8 ● Total length (mm): 12.7 ● Operating pressure (MPa): 1 ● Operating temperature (℃): 1.6 to 150 ● Fluid used: Air ● Processed air flow rate (m3/min): 0.3 ● Two-sided width (mm): 11 ● Operating pressure: 1MPa ● Fluid temperature: 5 to 150℃ ● Maximum temperature range: 1.6 to 150℃ ● Guaranteed pressure resistance: 2.0MPa Materials/Finish: ● Body: Brass ● Element: Sintered brass
