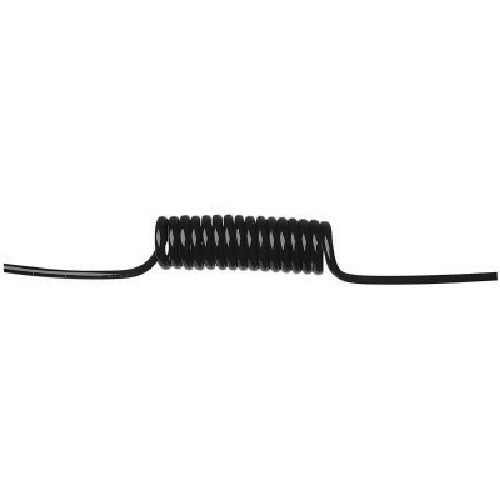

Chiyoda Touch Spiral Tube 10mm/Usage Range 650mm TPS-10-5 1 piece

Catalogue number: TPS-10-5 Features: ● Uses polyurethane resin, giving it excellent flexibility. ● Uses a touch tube with high outer diameter precision. ● Available in 10 colors. ● Custom made to your specifications (length x coil diameter). Please contact us. Applications: ● Various air piping ● Moving parts Specifications: ● Usage range (m): 0.65 ● Outer diameter (mm): 10 ● Inner diameter (mm): 6.5 ● Fluid used: Compressed air ● Standard color: Black ● Roll outer diameter (mm): 52 ● A dimension (mm): 450 ● Usage range (mm): 650 ● Fluid temperature (℃): -5 to 60℃ ● Usage pressure: Compressed air 0.8MPa, vacuum pressure -100KPa Material/Finish: ● Body: Polyurethane
