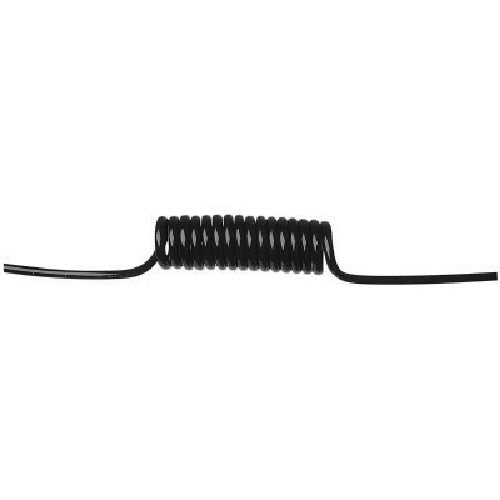

Chiyoda Touch Spiral Tube 4mm/Usage Range 500mm TPS-4-5 1 piece

Catalogue number: TPS-4-5 Features: ● Uses polyurethane resin, giving it excellent flexibility. ● Uses a touch tube with high outer diameter precision. ● Available in 10 colors through custom production. ● Custom production available in desired sizes (length x coil diameter). Please contact us. Applications: ● Various air piping ● Moving parts Specifications: ● Usage range (m): 0.5 ● Outer diameter (mm): 4 ● Inner diameter (mm): 2 ● Fluid used: Compressed air ● Standard color: Black ● Outer coil diameter (mm): 21 ● A dimension (mm): 420 ● Usage range (mm): 500 ● Fluid temperature (℃): -5 to 60℃ ● Usage pressure: Compressed air 0.8MPa, vacuum pressure -100KPa Material/Finish: ● Body: Polyurethane
