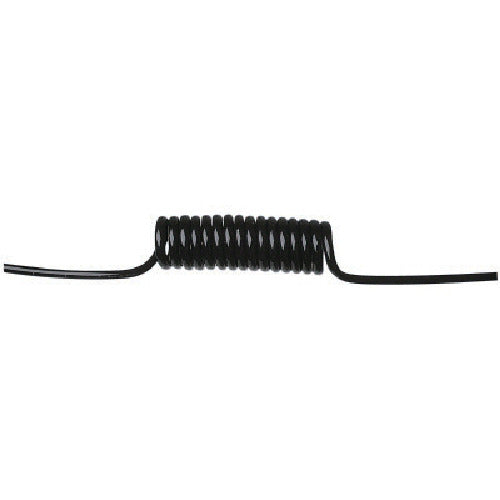

Chiyoda Touch Spiral Tube 6mm/Usage range 1150mm TPS-6-25 1 piece

Catalogue number: TPS-6-25 Features: ● Uses polyurethane resin, giving it excellent flexibility. ● Uses a touch tube with high outer diameter precision. ● Available in 10 colors. ● Custom made to order, can accommodate your desired size (length x coil diameter). Please contact us. Applications: ● Various air piping ● Moving parts Specifications: ● Usage range (m): 1.15 ● Outer diameter (mm): 6 ● Inner diameter (mm): 4 ● Fluid used: Compressed air ● Standard color: Black ● Outer coil diameter (mm): 38 ● A dimension (mm): 550 ● Usage range (mm): 1150 ● Fluid temperature (℃): -5 to 60℃ ● Operating pressure: Compressed air 0.8MPa, vacuum pressure -100KPa Material/Finish: ● Body: Polyurethane
