千代田通商(株)

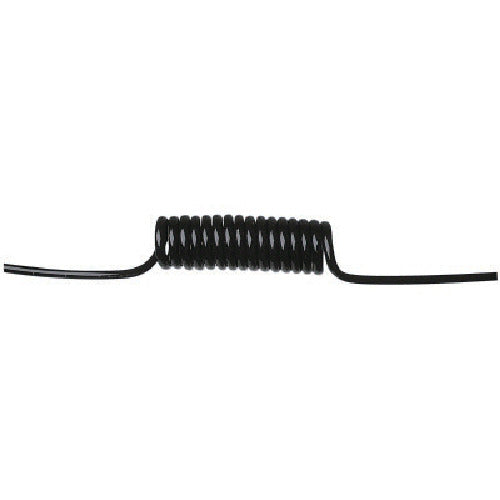

Chiyoda Touch Spiral Tube 6mm/Usage range 550mm TPS-6-5 1 piece
Chiyoda Touch Spiral Tube 6mm/Usage range 550mm TPS-6-5 1 piece
Regular price
¥1,446
Regular price
Sale price
¥1,446
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: TPS-6-5 Features: * Uses polyurethane resin, giving it excellent flexibility. * Uses a touch tube with high outer diameter precision. * Can be made to order in 10 colors. * Can be made to order in the size you require (length x coil diameter). Please contact us for details. Uses: ● Various air piping ● Moving parts Specifications: ● Coil diameter (mm): 38 ● Color: Black ● Hose inner diameter x outer diameter (mm): 4 x 6 ● Usage range (m): 0.55 ● Total length (mm): 430 ● Coil length (mm): 30 ● Outer diameter (mm): 6 ● Inner diameter (mm): 4 ● Maximum operating pressure (MPa): 0.8 ● Operating temperature range (℃): -5 to 60 (23 to 140°F) ● Operating vacuum pressure (MPa): -0.1 ● Fluid used: Compressed air ● Standard color: Black ● Roll outer diameter (mm): 38 ● A dimension (mm): 430 ● Usage range (mm): 550 ● Fluid temperature (℃): -5 to 60℃ ● Operating pressure: Compressed air 0.8MPa, vacuum pressure -100KPa Material/Finish: ● Body: Polyurethane
