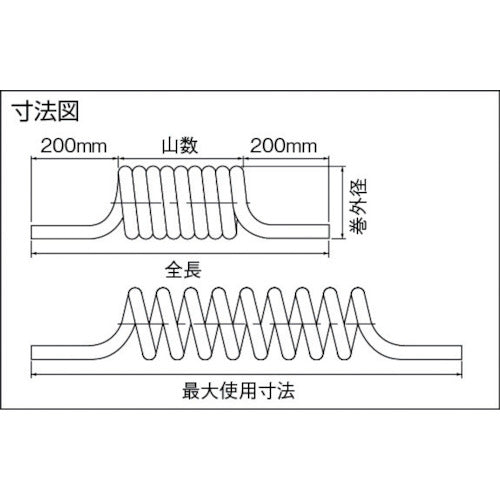

Catalog number: TPS-8-45 Features: ●The tube is coiled, making it ideal for expandable piping and effective for piping in narrow spaces. ●Uses TE tubes with excellent water resistance. Specifications: ●Coil diameter (mm): 42 ●Color: Black ●Hose inner diameter x outer diameter (mm): 5 x 8 ●Usage range (m): 2.2 ●Total length (mm): 760 ●Coil length (mm): 360 ●Outer diameter (mm): 8 ●Inner diameter (mm): 5 ●Maximum operating pressure (MPa): 0.8 ●Operating temperature range (℃): -5 to 60 (23 to 140°F) ●Using vacuum pressure (MPa): -0.1 ●Using fluid: Compressed air, water ●Fluid temperature (℃): Air -5 to 60, water 5 to 40 (no freezing) ●Using pressure (MPa): Air 0.8, water 0.3 ●Maximum vacuum pressure (Torr): 10 (-100kPa) Material/Finish: ●Polyurethane
