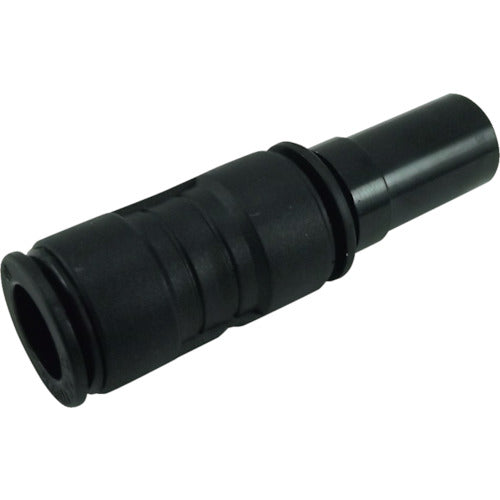

Chiyoda Tube Fitting Five Reducer 10mm (Tube) x 12mm FR10-12RC 1 pc

Catalog number: FR10-12RC Specifications: ● Compatible tube outer diameter D1 (mm): 10 ● Compatible tube outer diameter D2 (mm): 12 ● Operating pressure: 1MPa (air), 0.3MPa (water) ● Operating fluid: air, water ● Compatible joint size D2 (mm): 12 ● Compatible tube inner diameter D (mm): 10 ● Joint diameter E (mm): 12 ● Fluid temperature (℃): -5 to 60℃ (air), 5 to 40℃ (water) Material/Finish: ● Body: Flame-retardant polybutylene terephthalate (PBT) ● Sealing rubber: Nitrile rubber (NBR)
