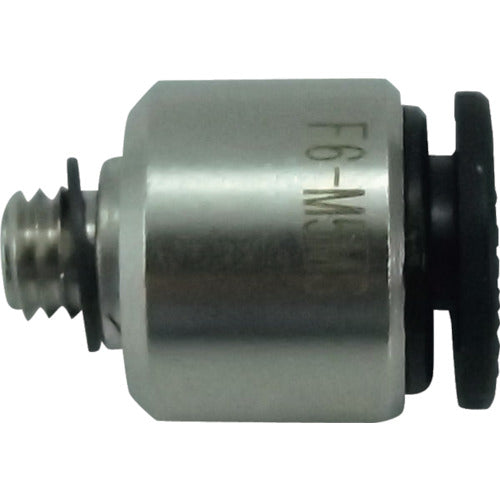

Chiyoda Tube Fitting Five Hexagonal Socket Male Connector 6mm M5 x 0.8 F6-M5MS 1 pc

Catalog number: F6-M5MS Features: ● Uses PBT resin to prevent fire spread accidents such as spattering. ● Achieves the first lightweight design in a general-purpose pneumatic fitting. Specifications: ● Applicable tube outer diameter D (mm): 6 ● Connection port size: M5 x 0.8 ● Operating pressure: 1 MPa (air), 0.3 MPa (water) ● Operating fluid: air, water ● Fluid temperature (℃): -5 to 60℃ (air), 5 to 40℃ (water) ● Fluid temperature (℃): -5 to 60℃ (air), 5 to 40℃ (water) Material/Finish: ● Body: Brass + nickel plating ● Sealing rubber: Nitrile rubber (NBR)
