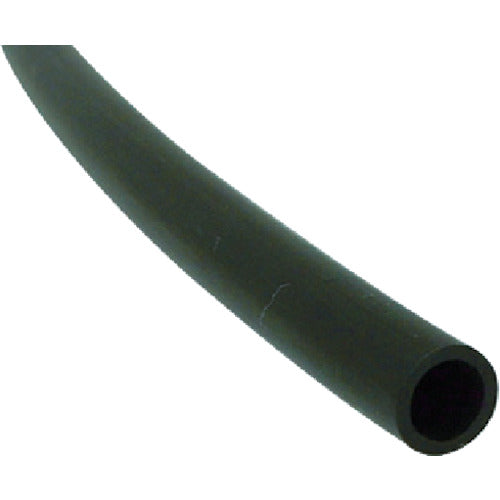

Chiyoda Nylon Tube 12mm/20m Black TN-12X9-20-BK 1 Roll

Catalog number: TN-12X9-20-BK Features: ●Excellent mechanical strength. ●Excellent heat and cold resistance. ●Excellent oil resistance. ●Cut marks are printed every 1m, making cutting and inventory management convenient. Applications: ●Various air piping, industrial water piping. Specifications: ●Color: Black ●Outer diameter (mm): 12 ●Inner diameter (mm): 9 ●Minimum bending radius (mm): 69 ●Total length (m): 20 ●Fluid used: Compressed air ●Fluid temperature (℃): Air -5 to 60℃ ●Maximum operating pressure: Compressed air 1.5MPa (correction coefficient must be confirmed) ●Vacuum pressure: -100kPa Material/Finish: ●Body: Nylon
