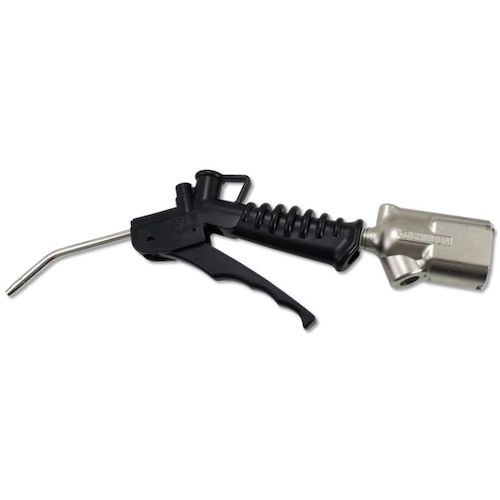

Chiyoda Pulse Blow Controller PB-C1000A 1 unit

Catalog number: PB-C1000A Features: ●No power supply required, it operates only with air supply to generate pulse blow (intermittent blow). ●Air consumption can be reduced by approximately 50% by repeatedly turning the air on and off. ●The pulse can be easily adjusted with the adjustment screw. Applications: ●Blowing off cutting chips. ●Draining, drying, and dust removal before painting of workpieces. ●Cooling by air blow during cutting, cutting, and grinding work. ●Various air blows Specifications: ●Air pressure used (MPa): 0.3 to 1.0 ●Width x depth x height (mm): 80 x 30 x 50 ●Fluid used: Compressed air ●Flow rate: 1000L/min ●Temperature range used: 0 to 60°C ●Pressure range used: 0.3 to 1.0MPa ●Pulse control range: 1 to 15Hz Materials/Finish: ●Body: Aluminum ●Piston: Polyacetal ●Packing: NBR ●Adjustment screw: Nickel-plated brass
