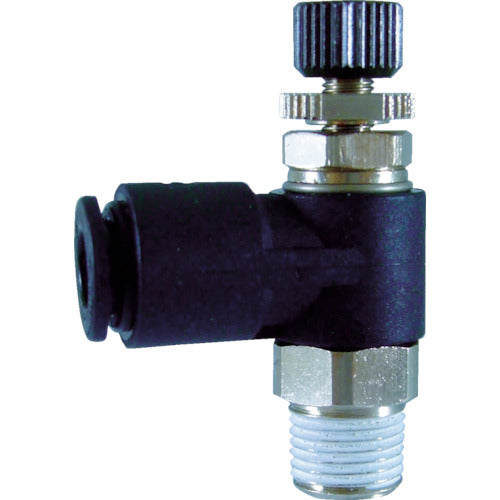

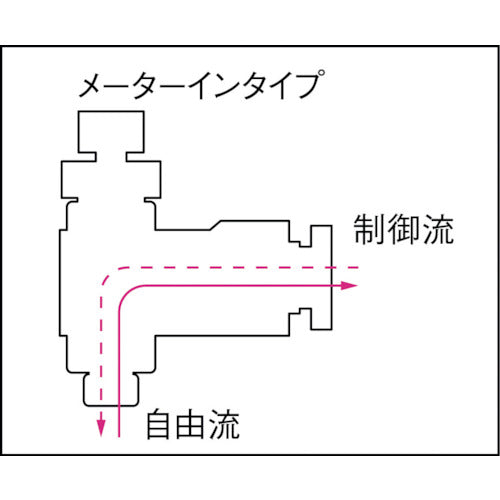

Catalog number: F8R-02SC-I Features: ● The high number of rotations of the needle valve allows smooth speed control. ● Flame-retardant PBT resin is used as standard to prevent accidents in welding environments. Applications: ● Various air piping Specifications: ● Connection diameter: R1/4 ● Applicable tube outer diameter D (mm): 8 ● Fluid used: Compressed air ● Threaded part: R1/4 ● Meter-in ● Operating temperature range: -5 to 60°C (no freezing) ● Operating pressure: 0.05 to 0.7MPa ● Meter-in type Materials/Finish: ● Plastic parts: Flame-retardant polybutylene terephthalate (PBT) ● Metal parts: Brass + nickel plating ● Sealing rubber: Nitrile rubber (NBR)
