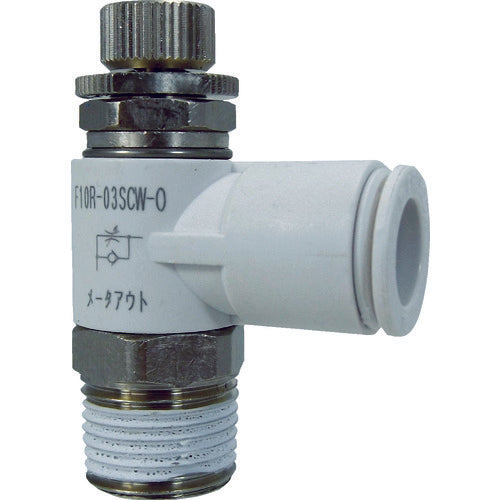

Catalog number: F10R-03SCW-O Features: ● The high number of rotations of the needle valve allows smooth speed control. ● Flame-retardant PBT resin is used as standard to prevent accidents in welding environments. ● Lightweight and low cost. ● White body. Applications: ● Various air piping. Specifications: ● Connection diameter: R3/8 ● Compatible tube outer diameter D (mm): 10 ● Fluid used: Compressed air ● Fluid temperature (℃): -5 to 60 ● Operating pressure: 0.05 to 0.7 MPa ● Male thread type comes with thread seal Material/Finish: ● Body: Brass, polybutylene terephthalate, stainless steel ● Seal material: Nitrile rubber
