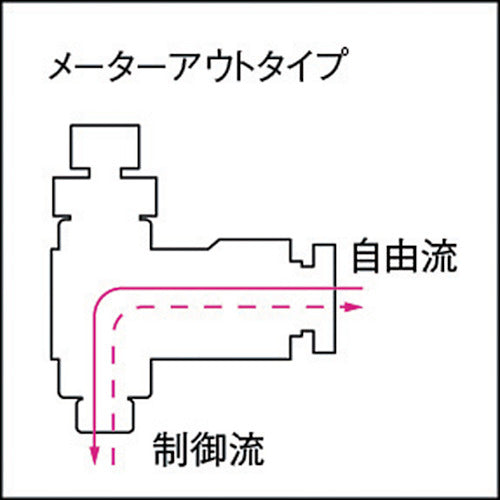

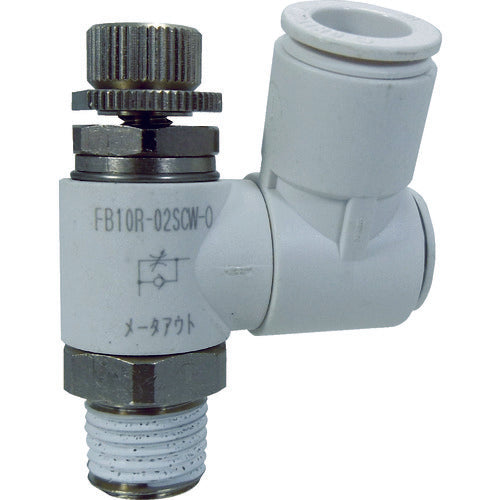

Catalog number: FB10R-02SCW-O Features: ●Flame-retardant PBT resin is used as standard to prevent accidents in welding environments. ●The needle valve has a high rotation speed, allowing smooth speed control. ●Lightweight and low cost. Specifications: ●Connection diameter: R1/4 ●Applicable tube outer diameter D (mm): 10 ●Fluid used: Compressed air ●Color: White ●Operating temperature range: -5 to 60°C (no freezing) ●Operating pressure: 0.05 to 0.7MPa ●Meter-out type Material/Finish: ●Resin parts: Flame-retardant polybutylene terephthalate (PBT) ●Metal parts: Brass + nickel plating ●Seal rubber: Nitrile rubber (NBR)
