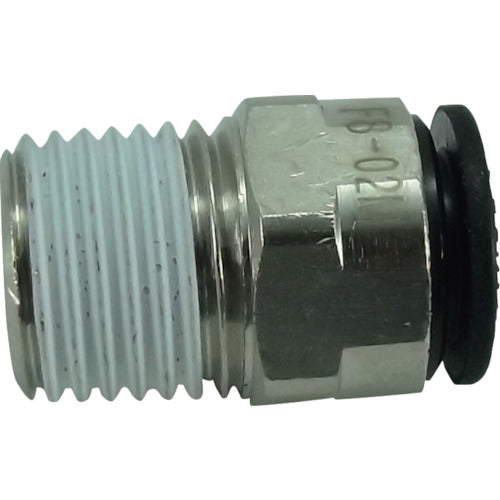

Chiyoda Five Male Connector 8mm R1/4 F8-02M 1 piece

Catalog number: F8-02M Features: ●Uses PBT resin to prevent fire spread accidents such as spatter. ●Achieves the first lightweight design in a general-purpose pneumatic fitting. Specifications: ●Applicable tube outer diameter D (mm): 8 ●Connection port size: R1/4 ●Hexagonal face size (mm): 14 ●Operating pressure: 1MPa (air), 0.3MPa (water) ●Operating fluid: air, water ●Fluid temperature (℃): -5 to 60℃ (air), 5 to 40℃ (water) ●Fluid temperature (℃): -5 to 60℃ (air), 5 to 40℃ (water) Material/Finish: ●Body: Brass + nickel plating ●Seal rubber: Nitrile rubber (NBR)
