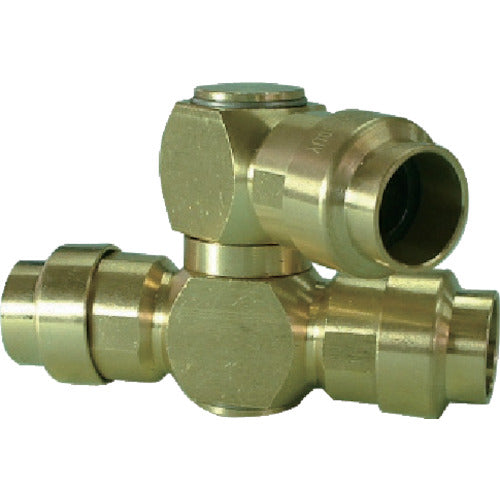

Chiyoda Five H-type Union Y 8mm HB-8-00UY 1 pc

Catalog number: HB-8-00UY Features: ● Anti-spatter fitting for welding jigs. ● The main body is made of brass, making it strong. ● Comes standard with a metal spatter cap, completely shutting out spatter that falls on the release ring or the inner tube of the spatter tube (two-layer type). Applications: ● For air piping in welding environments Specifications: ● Applicable tube outer diameter D (mm): 8 ● Fluid used: Compressed air, industrial water ● Operating pressure: 1 MPa (water: 0.3 MPa) ● Fluid temperature (℃): -5 to 60℃ Materials/Finish: ● Brass, stainless steel, PBT resin ● Sealing material: Nitrile rubber
