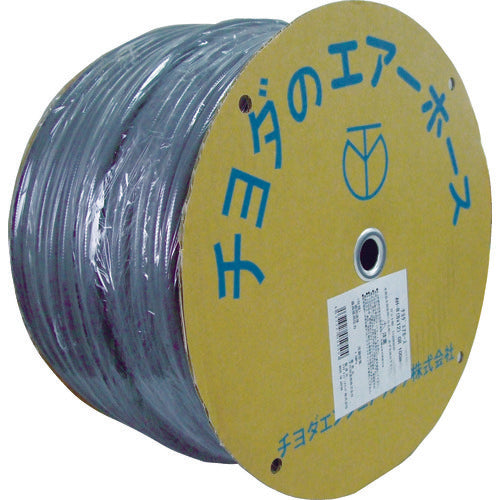

Chiyoda Braided Hose Gray 11 x 16 mm/100 m AH-11GR-100 1 roll

Catalog number: AH-11GR-100 Features: ● Extremely soft compared to single-layer urethane or nylon tubes. ● Excellent oil resistance, ideal for piping in factories. Applications: ● Air piping in factories ● Piping for air tools Specifications: ● Color: Gray ● Outer diameter (mm): 16 ● Inner diameter (mm): 11 ● Total length (m): 100 ● Wall thickness (mm): 2.5 ● Maximum operating pressure (MPa): 1.5 ● Allowable bending radius: (Normal temperature) 80 ● Operating temperature range (℃): -5 to 60 ● Fluid used: Air ● Fluid temperature (℃): -5 to 60℃ ● Operating pressure: 1.5MPa Material/Finish: ● Polyurethane
