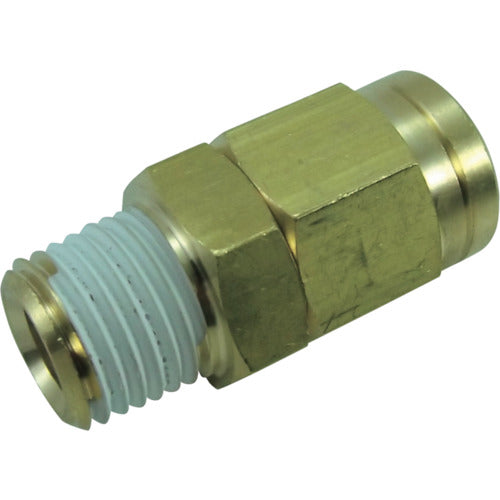

Chiyoda Hose nipple 10mm R1/4 H6.5-2M 1 piece

Catalogue number: H6.5-2M Features: ● Tightened with a cap nut, it is more reliable than tightening with a hose band, etc. ● Designed to make the most of the air flow rate inside the hose. Specifications: ● Connection diameter D: R1/4 ● Hexagonal face (mm) H1: 16 ● Hexagonal face (mm) H2: 16 ● Type: Hose nipple ● Fluid used: Air, water ● Compatible tube outer diameter x inner diameter (mm): 10 x 6.5 ● Fluid used: Air, water ● Fluid temperature: -5 to 60°C (air), 5 to 40°C (water) ● Operating pressure: 1MPa ● Sealed (R threaded section) Material/Finish: ● Body: Brass
