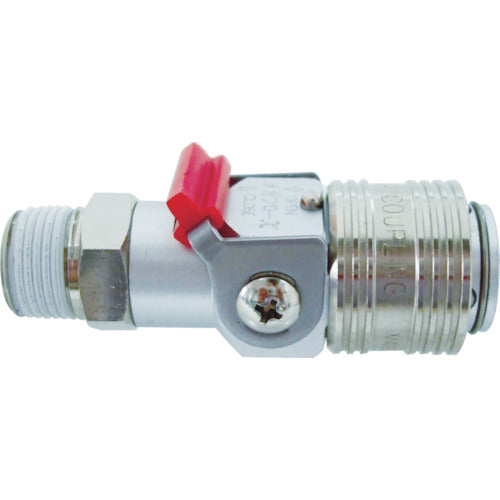

Chiyoda Megaflow X for 11x16 polyurethane hose with purge MFXP-11H 1 pc

Catalog number: MFXP-11H Features: ● Equipped with one-touch connection function, the insertion part is designed to be pressureless when connected. ● Equipped with a purge function (residual pressure release function) that eliminates hose recoil and unpleasant noise caused by residual pressure in the hose. Specifications: ● Maximum operating pressure (MPa): 1.5 ● Fluid used: Air ● Connection port size: 11 x 16 ● Hexagonal face (mm) H2: 24 ● Hexagonal face (mm) H1: 24 ● Fluid temperature: -5 to 60°C Materials/Finish: ● Body: Aluminum alloy, steel + nickel plating ● Sealing rubber: Nitrile rubber (NBR) Notes: ● Compatible with general couplings.
