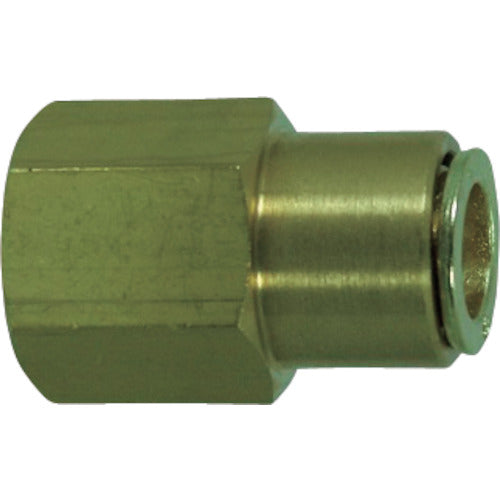

Chiyoda Cooling Water Pipe Touch Connector Fuji V Type Female Connector (Metal) 12mm Rc1/2 12-04F-V 1pc

Catalog number: 12-04F-V Features: ●Fluororubber packing provides excellent durability. Applications: ●For cooling water piping. Specifications: ●Compatible tube outer diameter D (mm): 12 ●Connection port size: Rc1/2 ●Hexagonal face size (mm): 24.0 ●Maximum operating pressure (MPa): 1.0 ●Operating fluid: Water, air ●Compatible tube outer diameter (mm): 12 ●Fluid temperature (℃): 0-200 ●Total length (mm): 35.9 ●Fluid temperature (℃): 0-200℃ Materials/Finish: ●Body: Brass ●Seal rubber: Fluororubber
