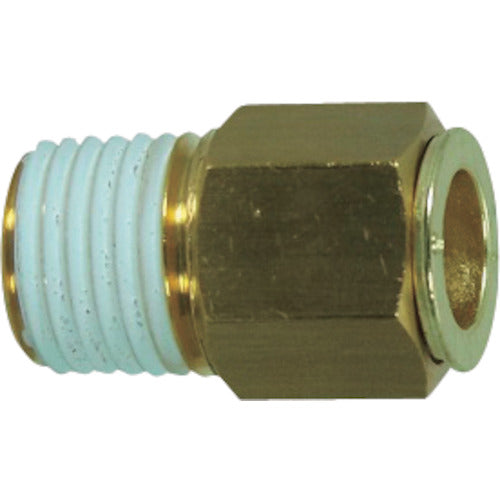

Chiyoda Cooling Water Pipe Touch Connector Fuji V Type Male Connector (Metal) 8mm R1/8 8-01M-V 1 Piece
Chiyoda Cooling Water Pipe Touch Connector Fuji V Type Male Connector (Metal) 8mm R1/8 8-01M-V 1 Piece
Regular price
¥271
Regular price
Sale price
¥271
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: 8-01M-V Features: ●Fluoro rubber is used for the packing, providing excellent durability. Applications: ●For cooling water piping. Specifications: ●Applicable tube outer diameter D (mm): 8 ●Connection port size: R1/8 ●Hexagonal face size (mm): 14.0 ●Operating pressure: 1MPa ●Operating fluid: Water, air ●Applicable tube outer diameter (mm): 8 ●Pressure resistance (MPa): 1.0 ●Fluid temperature (℃): 0-200 ●IN connection port size: ●One-touch attachment and detachment without tools. ●Lock structure that prevents damage to tubes. ●Total length (mm): 26.7 ●Applicable pipe fitting size D (mm): 0-200 ●IN connection port size ●Specifications: One-touch attachment and detachment without tools. ●Specifications: Lock structure that prevents damage to tubes. ●Fluid temperature (℃): 0-200℃ Material/Finish: ●Body: Brass ●Seal rubber: Fluoro rubber
