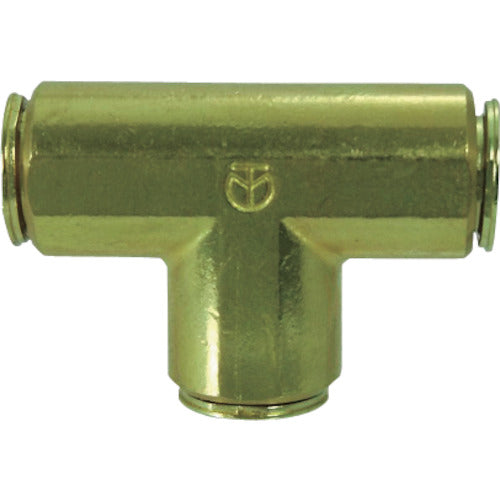

Chiyoda Cooling Water Pipe Touch Connector Fuji V Type Union Tee (Metal) 8mm 8-00UTB-V 1pc

Catalog number: 8-00UTB-V Features: ●Fluororubber packing provides excellent durability. Applications: ●For cooling water piping. Specifications: ●Compatible tube outer diameter D (mm): 8 x 8 x 8 ●Maximum operating pressure (MPa): 1.0 ●Fluid temperature (℃): 0 to 200 ●Fluid used: Industrial water (compressed air) ●Size (mm): 28.6 x 42.4 ●Outer diameter (mm): 15.0 ●Compatible tube outer diameter (mm): 8 x 8 x 8 ●Fluid temperature: 0 to 200℃ Material/Finish: ●Body: Brass ●Seal rubber: Fluororubber
