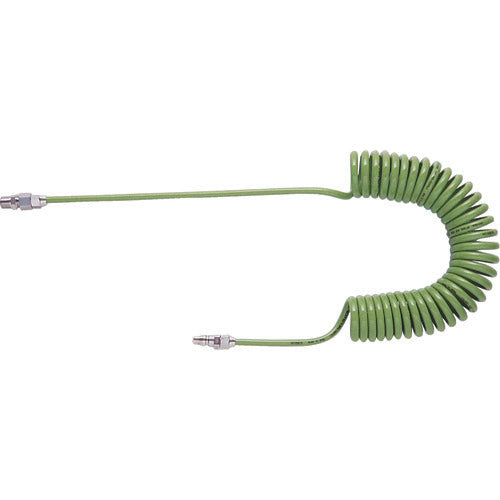

Chiyoda Lightweight Spiral 705 7mm / Usage range 4m TPS-705-0103LG 1 piece

Catalog number: TPS-705-0103LG Features: *The hose has been slimmed down and is 25% lighter in weight (compared to our previous model). *Highly elastic polyurethane material is used, providing excellent springiness and durability. *The metal fittings are nickel-plated, providing excellent corrosion resistance and maintaining their beauty for a long time. Uses: ● Various air piping ● Moving parts Specifications: ● Coil diameter (mm): 47 ● Color: Light green ● Hose inner diameter x outer diameter (mm): 5 x 7 ● Usage range (m): 4 ● Total length (mm): 675 ● Coil length (mm): 275 ● Outer diameter (mm): 7 ● Inner diameter (mm): 5 ● Fluid used: Air ● Fittings: G1/4 + R1/4, R1/4, C4P-5H-S ● Fluid temperature: -5 to 60°C ● Operating pressure: 0.8MPa ● Connection partner: Hose fitting ● Hose inner diameter x outer diameter: 5 x 7mm Material/Finish: ● Body: Polyurethane ● Coupling: Brass, steel plating
