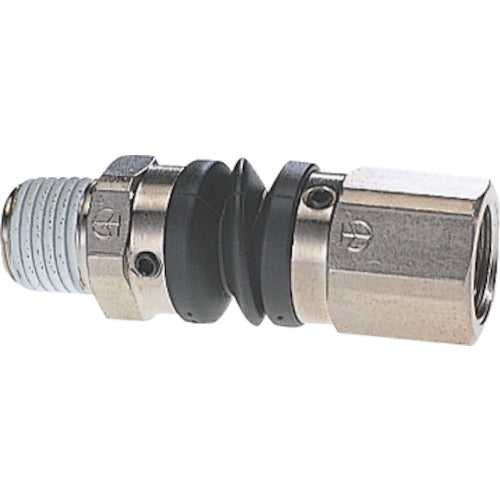

Chiyoda Metal Coupling Free Angle FM Type G1/4 R1/4 3FAG2F-2M 1 pc

Catalogue number: 3FAG2F-2M Features: ● Freely changeable direction, ideal for handheld work such as tools. ● Freely rotatable, prevents hose from twisting or breaking. ● Threads are sealed, so piping can be used as is. Applications: ● As a handheld universal joint for air tools, etc. Specifications: ● Fluid used: Compressed air ● Suitable thread sizes: R1/4, G1/4 ● Operating temperature range: -5 to 60°C ● Maximum operating pressure: 1MPa ● Suitable thread sizes: R1/4, G1/4 Materials/Finish: ● Body: Steel plated ● Sealing material: Nitrile rubber ● Cover: Polyurethane rubber
