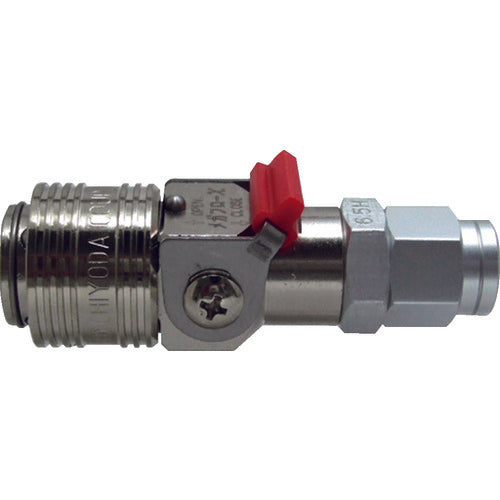

Chiyoda Metal Coupling Megaflow X Purged Brass 6.5 x 10 for Polyurethane Hose MFXP-6.5HB 1 pc

Catalog number: MFXP-6.5HB Features: ● Equipped with one-touch connection function, the insertion part is designed to be pressureless when connected. ● Equipped with a purge function (residual pressure release function) that eliminates hose recoil and unpleasant noise caused by residual pressure in the hose. Specifications: ● Fluid used: Air ● Maximum operating pressure (MPa): 1.5 ● Connection port size: 6.5 x 10 ● Hexagonal side (mm) H1: 19 ● Hexagonal side (mm) H2: 16 ● Fluid temperature: -5 to 60°C Materials/Finish: ● Body: Aluminum alloy + brass ● Sealing rubber: Nitrile rubber (NBR) Notes: ● Compatible with general couplings.
