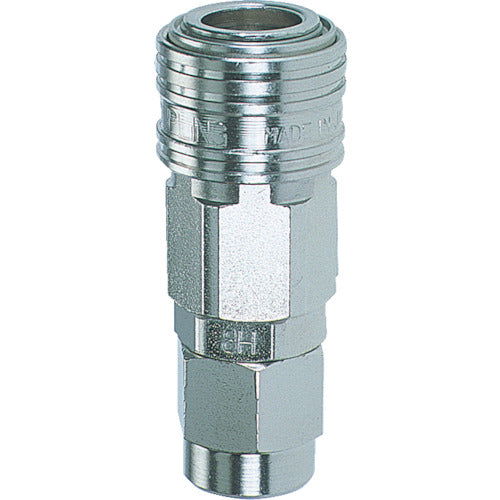

Chiyoda Metal Coupling CHS Coupling Socket for 6.5 x 10 Hose CHS-6.5H 1 Piece
Chiyoda Metal Coupling CHS Coupling Socket for 6.5 x 10 Hose CHS-6.5H 1 Piece
Regular price
¥989
Regular price
Sale price
¥989
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: CHS-6.5H Features: ● Couplings can be connected with one touch. ● O-ring (nitrile rubber) is used for sealing. ● Flow rate is approximately 1.5 times higher than that of poppet valve types. ● All parts are made of metal. ● Compatible with general couplings. Specifications: ● Fluid used: Air ● Maximum operating pressure (MPa): 1.5 ● Compatible plug: Chiyoda Tsusho CHS type plug ● Mating hose size inner diameter x outer diameter (mm): 6.5X10 ● Operating temperature range: -5 to 60°C Materials/Finish: ● Body: Steel, brass plating ● Sealing rubber: Nitrile rubber (NBR) Notes: ● Compatible with general couplings.
