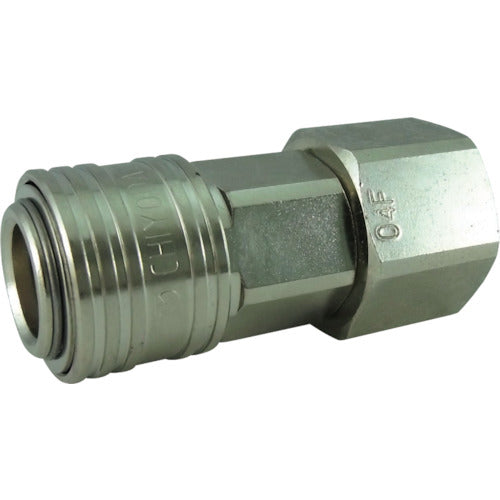

Chiyoda Metal Coupling CHS Coupling Socket Rc1/2 CHS-04F 1 pc

Catalog number: CHS-04F Features: ● O-ring seal structure prevents air leakage. ● All parts are made of metal for durability (excluding O-ring). ● One-action type that only requires inserting the nipple. ● Slide valve structure ensures large flow rate. Applications: ● For attaching and detaching air tools, etc. Specifications: ● Fluid used: Air ● Maximum operating pressure (MPa): 1.5 ● Counterpart mounting size: R1/2 ● Fluid temperature: -5 to 60°C ● Operating pressure: 1.5MPa Materials/Finish: ● Body: Steel, brass ● Sealing rubber: Nitrile rubber (NBR) Notes: ● Compatible with general couplings.
