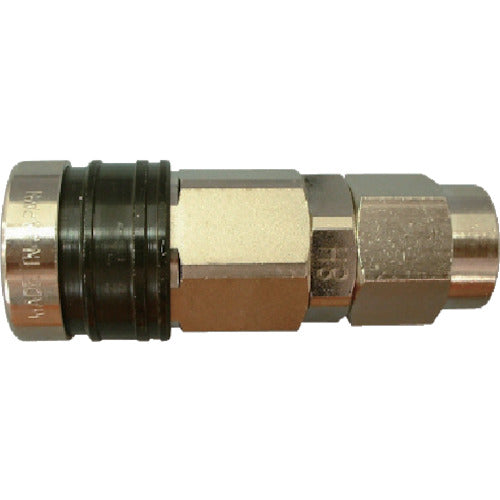

Chiyoda CHS coupling socket MP type for 8X12 hose CHS-8H-MP 1 piece

Catalog number: CHS-8H-MP Features: ● O-ring seal structure prevents air leakage. ● All parts are made of metal for durability (excluding O-ring). ● One-action type that only requires inserting the nipple. ● Slide valve structure ensures large flow rate. ● Sleeve cover attachment prevents dislodging when dragged. Applications: ● For attaching and detaching air tools, etc. Specifications: ● Fluid used: Compressed air ● Inner and outer diameter of polyurethane hose connection part (mm): 8 x 12 ● Steel dust cover included ● Fluid temperature (℃): -5 to 60℃ ● Operating pressure: 1.5MPa ● Male thread type includes screw seal Material/Finish: ● Steel, brass ● Seal material: Nitrile rubber Note: ● Compatible with general couplings.
