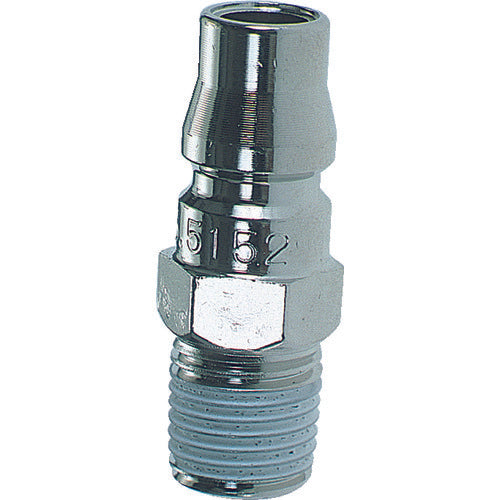

Chiyoda CHS coupling nipple R1/4 C4P-02M 1 piece

Catalog number: C4P-02M Features: ●One-touch connection of coupling. ●Uses an O-ring (nitrile rubber) for sealing. ●Compared to poppet valve types, it allows approximately 1.5 times the flow rate. ●All parts are made of metal. ●Compatible with general couplings. Specifications: ●Matching side mounting size: Rc1/4 ●Fluid used: Air ●Maximum operating pressure (MPa): 1.5 ●Operating temperature range: -5 to 60°C ●Compatible socket: Chiyoda Tsusho CHS type socket Material/Finish: ●Body: Steel + nickel plating ●Seal rubber: Nitrile rubber (NBR) Notes: ●Compatible with general couplings.
