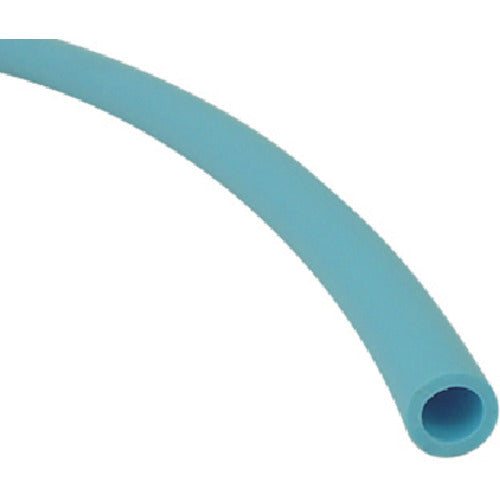

Chiyoda TE-AF type sputter tube LB (blue) 8mm/20m TE-8-AF-LB-20 1 piece

Catalog number: TE-8-AF-LB-20 Features: ● Single-walled spatter-resistant tube made of flame-retardant polyurethane resin. No need to strip the tube when installing. ● Excellent flexibility and small bending radius. ● Excellent outer diameter precision and roundness. ● Wide variety of sizes and colors available. ● Cut marks are displayed at 1m intervals, making it convenient for cutting and inventory management. Applications: ● Air piping for welding environments, industrial water piping Specifications: ● Color: Light blue ● Outer diameter (mm): 8 ● Inner diameter (mm): 5 ● Fluid used: Compressed air, industrial water ● Fluid temperature (℃): Air -5 to 60℃, water 0 to 40℃ ● Operating pressure: Compressed air 0.8MPa, water 0.3MPa, vacuum pressure -100KPa Material/Finish: ● Body: Flame-retardant (water-resistant) polyurethane
