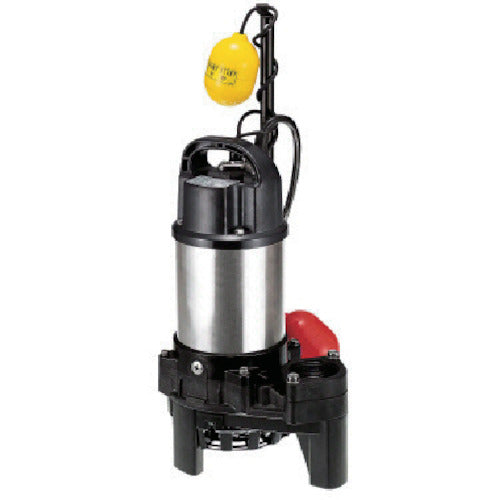

Tsurumi Plastic Submersible High Spin Pump for Miscellaneous Waste Water 60Hz Diameter 32mm Single Phase 100V 32PNA2.15S 60Hz 1 Unit

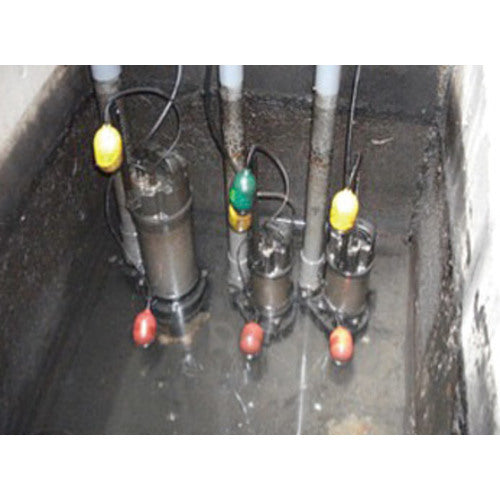

Catalogue number: 32PNA2.15S 60HZ Features: ● Equipped with a high-spin (vortex) impeller with a high-gap structure that provides excellent flow characteristics and pump performance, it is suitable for transporting and draining sewage containing impurities. Applications: ● For draining sewage from factories, car washes, buildings, basements, etc. ● For draining rainwater and spring water. ● For draining septic tanks and small-scale treatment plants. ● For miscellaneous kitchen wastewater. ● For draining sewage containing impurities. Specifications: ●Discharge volume (L/min): 80/150 ●Total head (m): 5/2 ●Frequency (Hz): 60 ●Diameter (mm): 32 ●Power supply (V): Single phase 100 ●Current (A): 3.8 ●Output (kW): 0.15 ●Total width (mm): 203 ●Total length (mm): 176 ●Total height (mm): 376 ●Foreign object passage diameter (mm): 10 ●Liquid temperature (℃): 0-40 ●Usable water quality: Sewage and miscellaneous wastewater ●Power cord length (m): 6 ●Automatic operation type Material/Finish: ●Pump casing: Resin (glass fiber reinforced) ●Impeller: Resin (glass fiber reinforced) ●Main shaft: SUS304 ●Motor frame: SUS304 Set contents/Accessories: ●Cabtyre cable ●Special screw-in phase flange ●Ground nameplate Note: ●Please be sure to specify the frequency when ordering. Part number example 32PNA2.15S: 50Hz ●Detachable device specifications are also available.
