Tsurumi Residual Water Suction and Drainage Sweep Pump 50Hz LSP1.4S 50HZ 1 unit

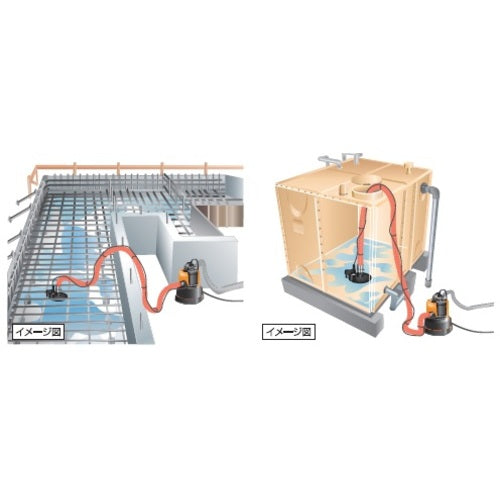

Catalog number: LSP1.4S 50HZ Features: *The check valve with the new siphon breaker mechanism prevents backflow of pumped water and leakage of sealed water caused by the siphon phenomenon when the pump is stopped. *Lightweight due to the use of aluminum die-cast and synthetic rubber for the main parts. Applications: *For suction and drainage of residual water. *For draining equipment and residual water from factories. *For draining accumulated water from slabs, floors, etc. at various construction sites. Specifications: ● Discharge volume (L/min): 50 (maximum) ● Total head (m): 6.9 (maximum) ● Frequency (Hz): 50 ● Diameter (mm): 25 x 25 ● Power supply (V): Single phase 100 ● Current (A): 6.8 ● Output (kW): 0.48 ● Overall width (mm): 265 ● Overall length (mm): 300 ● Overall height (mm): 307 ● Usable water quality: Sewage, residual water, accumulated water ● Power cord length (m): 5 ● Non-automatic operation type ● Power cord length: 5m ● Suction hose: 5m ● Can be customized to accommodate different voltages from a single unit Material/Finish: ● Impeller: Water-resistant special urethane rubber ● Casing: SBR+SUS304 ● Suction cover: SUS304 ● Base plate: ADC12+SBR ● Inlet: ADC12 ● Discharge with handle: ADC12 ● Outer cover: SPCC ● Shaft seal (mechanical seal): SiC Set contents/Accessories: ● Cab tire cable ● Suction hose (5m with metal fittings) ● Suction attachment ● φ25mm union hose coupling (for discharge) Caution: ● Be sure to fill with priming water before operation. (Approx. 1.8L)
