テイシン電機(株)

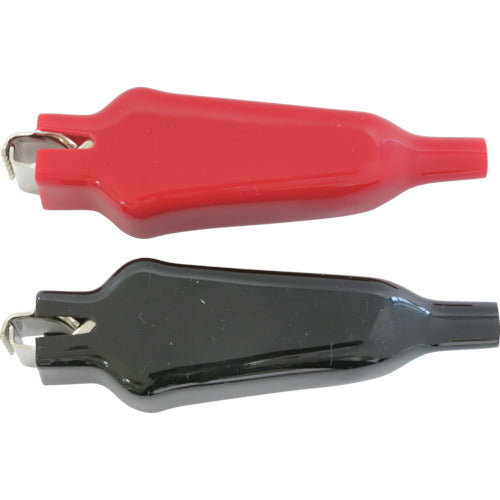

Teishin Stainless Steel Battery Clip C-531S-4 1 red and 1 black (total of 2) C-531S-4-R/B 1 S
Teishin Stainless Steel Battery Clip C-531S-4 1 red and 1 black (total of 2) C-531S-4-R/B 1 S
Regular price
¥1,513
Regular price
Sale price
¥1,513
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: C-531S-4-R/B Features: ● Red and black battery clip set. ● Stainless steel, so it will not rust. Applications: ● For chargers, measuring instruments, light electrical equipment, earthing, etc. Specifications: ● Rating (A): 30 ● Total length (mm): 85 ● Maximum opening dimension (mm): 15 ● Insulation resistance: DC500V, 100MΩ or more ● Set contents: 1 each of red and black ● Insulation voltage: AC2000V 1 minute or more ● Recommended crimping tool: HOZAN P-706 Material/Finish: ● Body: Stainless steel ● Cover: Polyvinyl chloride (PVC) ● Plating: Degreased
