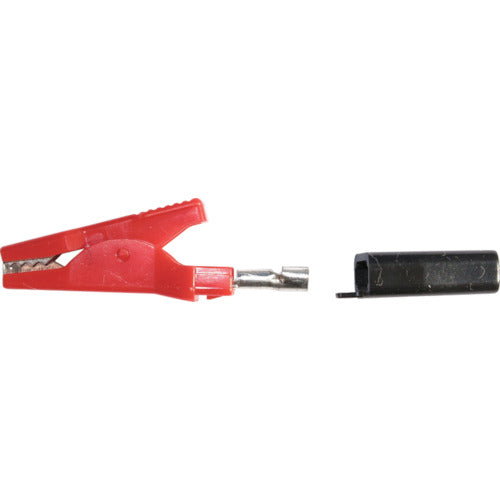

Catalog number: C-202A-R Features: ● Crimping type molded clip. Applications: ● For measuring instruments, etc. Specifications: ● Rating (A): 1 ● Total length (mm): 41 ● Maximum opening dimension (mm): 7 ● Insulation resistance: DC500V100MΩ or more ● Tooth width (mm): 2.2 ● Size: M ● Withstand voltage (V): AC1000 1 minute or more ● Set contents: Red x 5 ● Recommended crimping tool: Hozan P-706 ● Kwae length (mm): 8.2 Material/Finish: ● Body: Iron ● Body plating: Tin plating ● Cap: ABS
