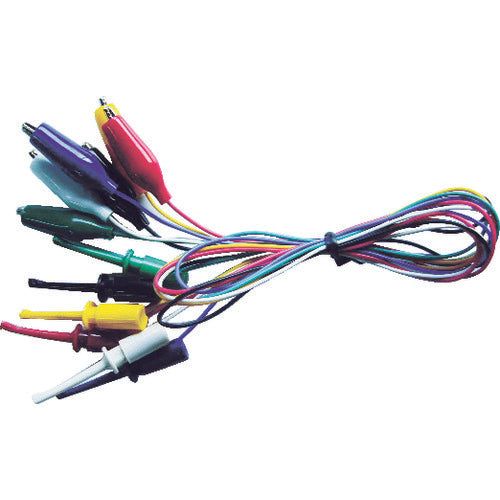

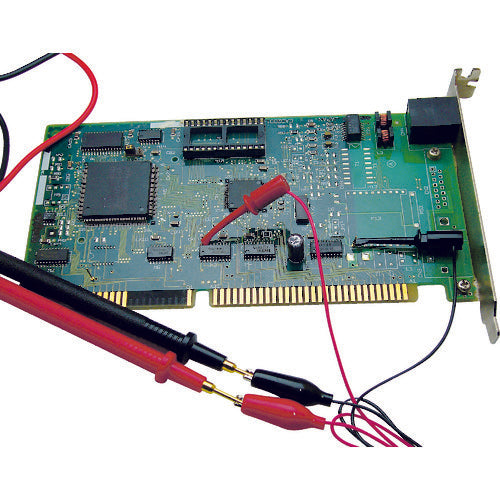

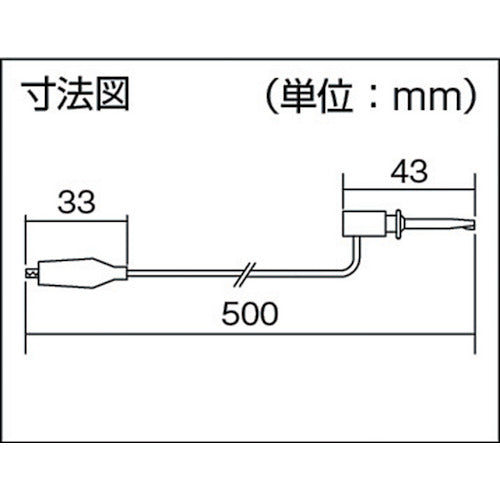

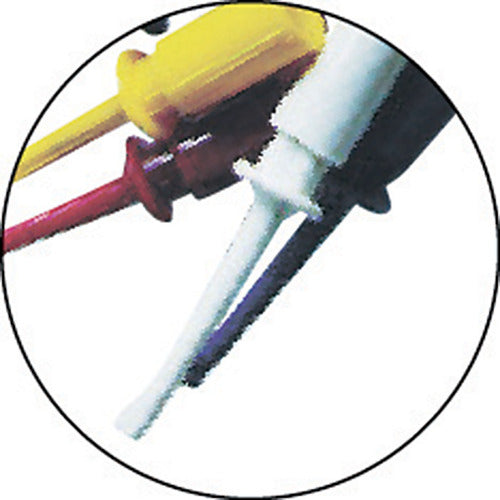

Catalog number: TLA-115 Features: ● No cable processing required. ● Comes in 6 colors, making it easy to color-code the wiring. Applications: ● Ideal for extracting signals from measuring instruments, etc. ● For electrical equipment manufacturers. Specifications: ● Total length (mm): 500 ● Lead wire (sq): 0.1 ● Bag contents: Red, black, green, yellow, white, blue, 1 of each color ● One side: Shield clip S / One side: IC clip S Material/Finish: ● Clip body: Iron ● IC clip terminal: Phosphor bronze ● IC clip cap: 6 nylon ● Cover, cable: Polyvinyl chloride (PVC)
