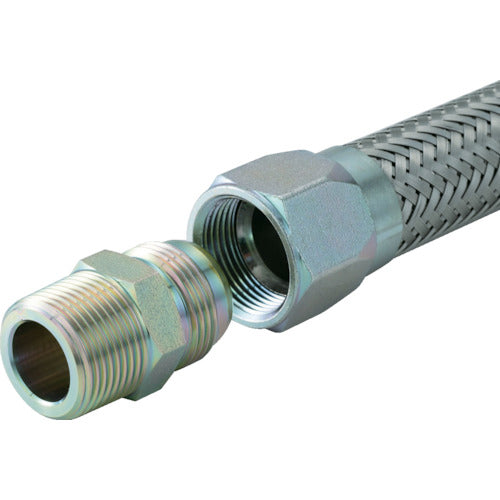

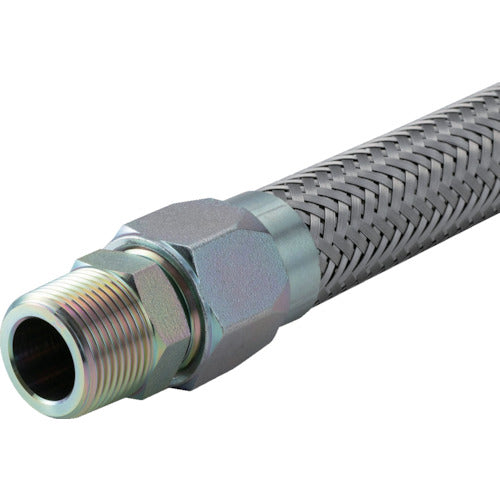

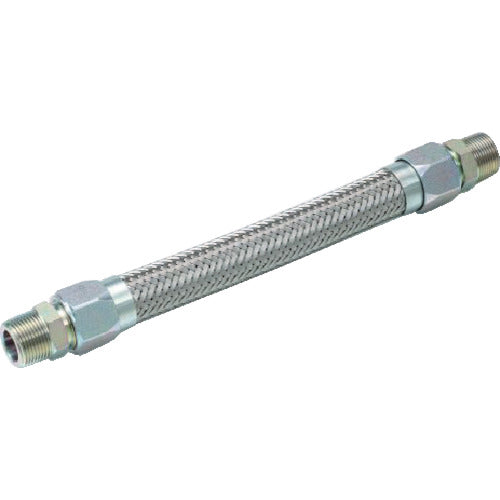

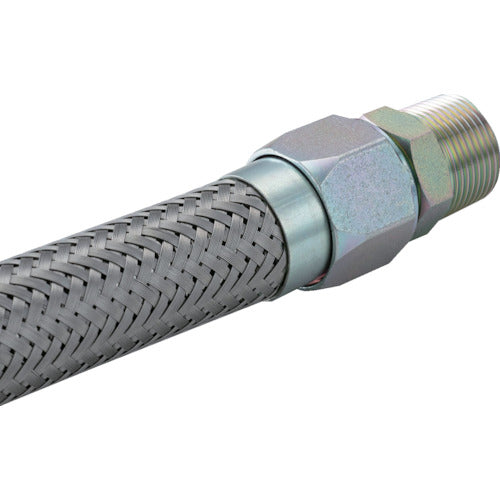

Catalog number: S215-20AX500L MXM SS400 Features: ● No need for packing, expanding the range of applicable fluids. ● The material of the fitting is SS400. Applications: ● For centering pipes. ● For absorbing thermal displacement of pipes. ● Countermeasures against subsidence and earthquakes. ● For absorbing repeated mechanical displacement. Specifications: ● Nominal diameter A: 20 ● Nominal diameter B: 3/4 ● Total length (mm): 500 ● Maximum operating pressure (MPa): 1.0 ● Operating temperature range (℃): 100 ● Connection method: Tapered male thread (R) ● Suitable fluids: Water, oil, air, gas, etc. (excluding corrosive fluids) ● Maximum operating pressure: 1MPa ● Operating temperature range: 0 to 100℃ ● Connection: Tapered male thread (R) Material/Finish: ● Flexible part: Stainless steel (SUS304) ● Fitting part: Steel (SS400)
