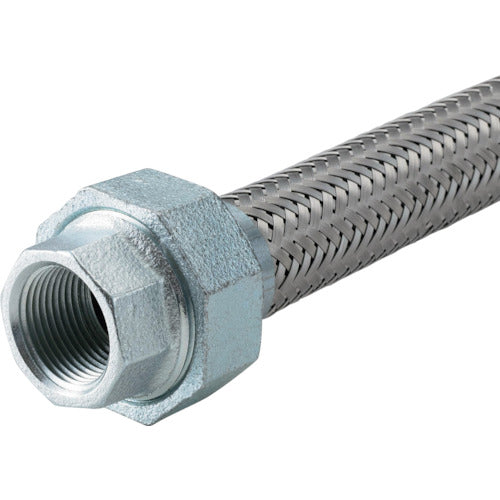

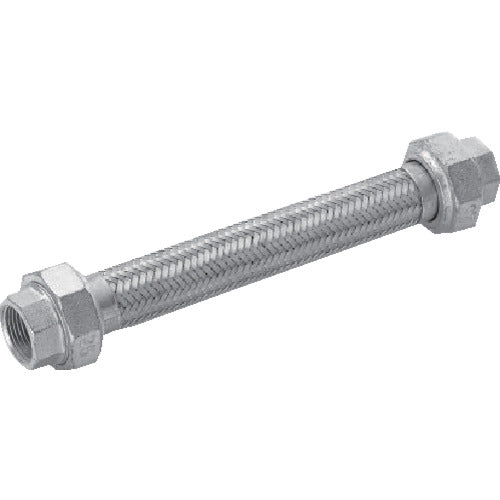

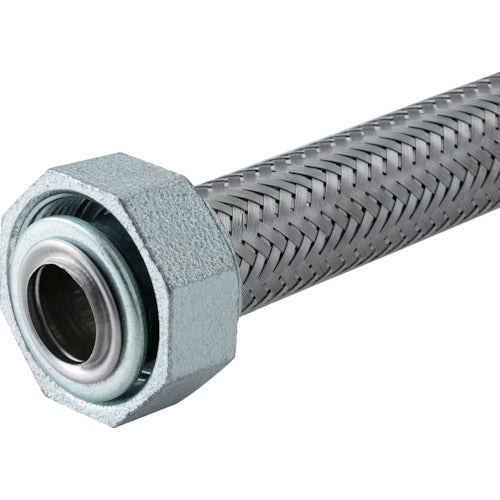

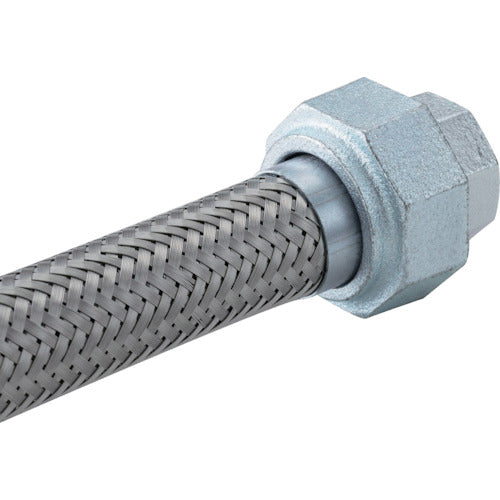

Technoflex Union Type Non-welded Flexible Hose S210-20Ax1000L FCMB Union S210-20AX1000L 1 Piece

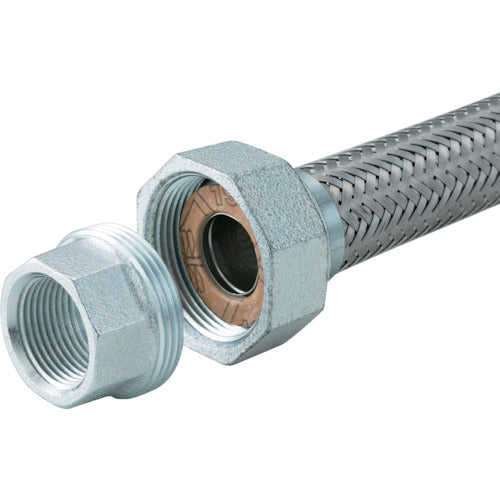

Catalog number: S210-20AX1000L Features: ●Non-asbestos packing is standard. Applications: ●For aligning pipes. ●Measures against subsidence and earthquakes. Specifications: ●Nominal diameter A: 20 ●Nominal diameter B: 3/4 ●Total length (mm): 1000 ●Maximum operating pressure (MPa): 1.0 ●Operating temperature range (℃): 100 ●Connection method: Screw ●Compatible fluids: water, oil, air, gas, etc. (excluding corrosive fluids) ●Maximum operating pressure: 1MPa ●Applicable fluids: water, oil, air, gas (excluding corrosive fluids) ●Operating temperature range: 0 to 100℃ ●Connection: Tapered female thread (Rc) Material/Finish: ●Flexible part: Stainless steel (SUS304) ●Union part: Malleable cast iron (FCMB270) Caution: ●Please use a dedicated gasket. The dimensions are different from general union gaskets.
