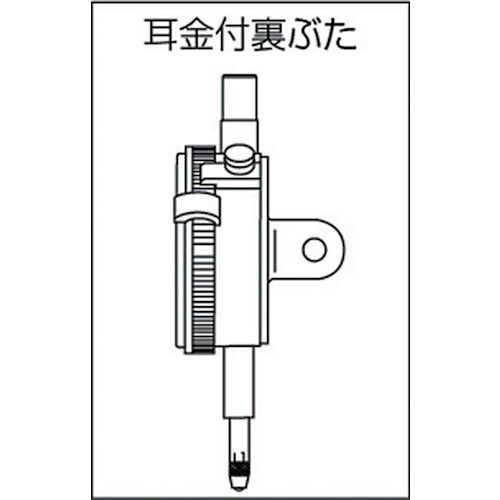

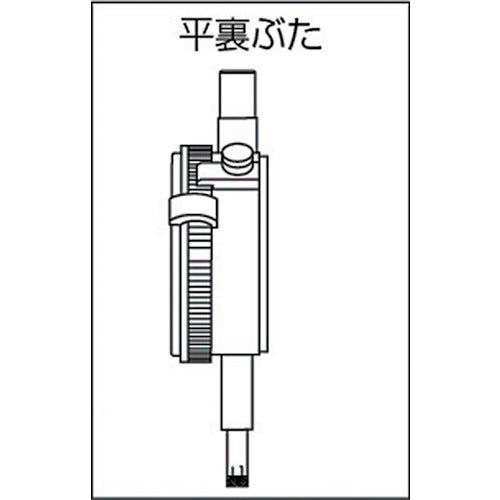

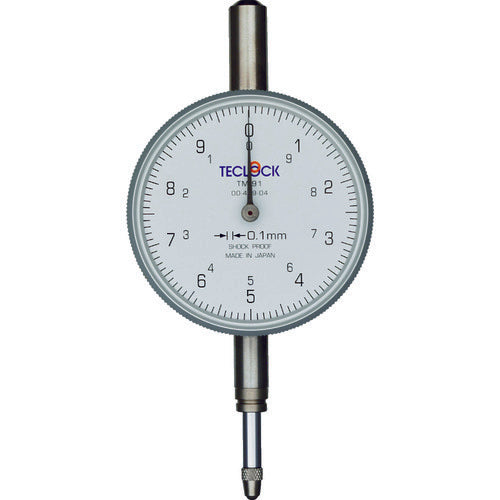

Catalogue number: TM-91F Features: ● Dial gauge with 0.1mm readings. Applications: ● For use in tight spaces, such as measuring machine dimensions and incorporating into specialized machines. ● Used for rough measurements of woodworking and leather products, and for determining deviations in dimensions. Specifications: ● Measurement range (mm): 0-10 ● Minimum display (mm): 0.1 ● Scale specifications: 0-5-10 ● Mounting shaft diameter (mm): 8 ● Measuring force (N): 1.4 or less ● Dial diameter (mm): 55 ● Stainless steel stem used ● One rotation of the long hand moves 1mm ● Back cover: With flat back cover ● Spindle type
