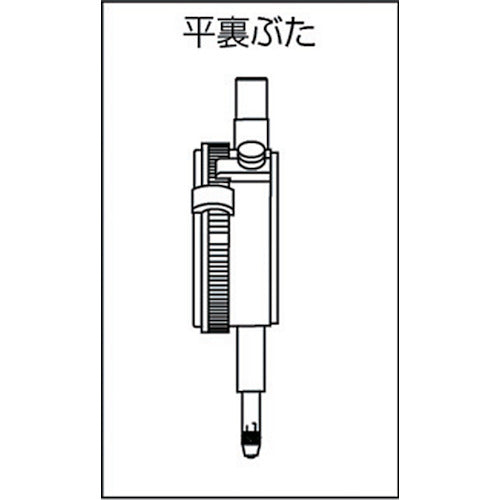

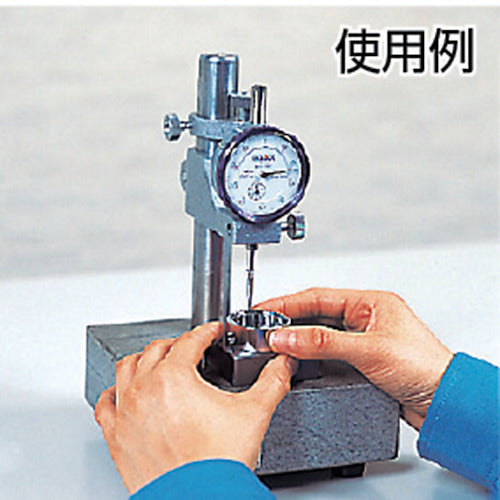

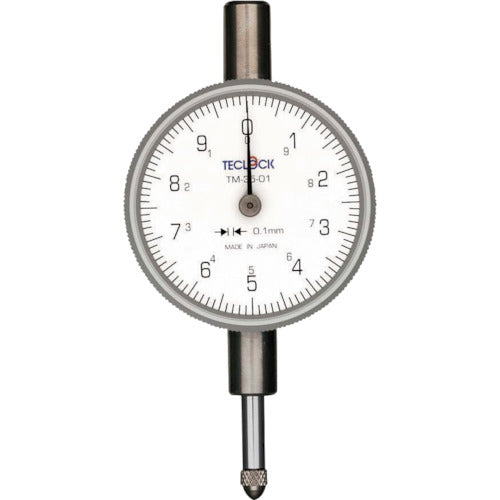

Catalog number: TM-35-01F Features: ● Compact, lightweight, easy to handle, and highly accurate, this is used extensively in many fields as a length measuring instrument. Applications: ● For use in places with limited space, such as for measuring machine dimensions and incorporating into dedicated machines. Specifications: ● Measurement range (mm): 0-10 ● Minimum display (mm): 0.1 ● Scale specifications: 0-5-10 ● Mounting shaft diameter (mm): 8 ● Measuring force (N): 1.5 or less ● Dial diameter (mm): 39 ● F at the end of the part number indicates a flat back cover type ● Two-hand type also available ● Spindle type
