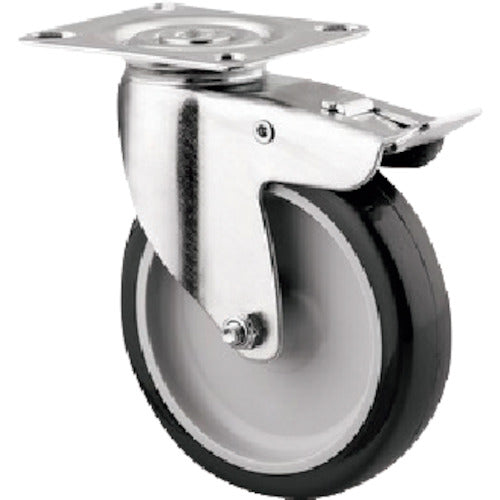

Tente Caster Plate-type Caster "AGILA" (Polyurethane Wheel) φ100 Swivel (with Total Lock) 1477PAO100P50 1 pc

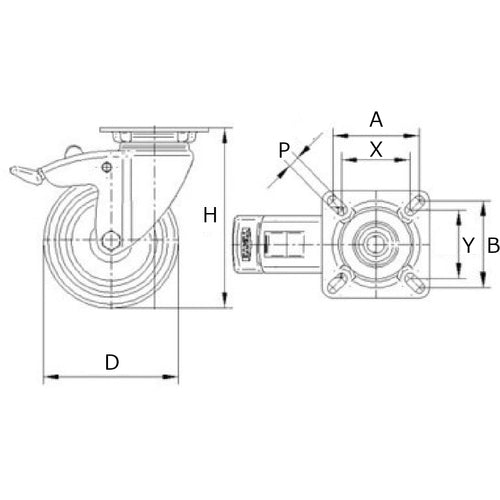

Catalogue number: 1477PAO100P50 Features: ●Standard caster with reliability and durability made in Germany. ●Tires are non-marking. Specifications: ●Wheel diameter D (mm): 100 ●Type: Swivel (with total lock) ●Allowable load (daN): 68.6 ●Allowable load (kgf): 70 ●Wheel width (mm): 25 ●Mounting height H (mm): 125 ●Mounting seat A (mm): 77 ●Mounting seat B (mm): 67 ●Mounting pitch X (mm): 61.5/56 ●Mounting pitch Y (mm): 51.5/46.5 ●Mounting hole diameter P (mm): 8.5 ●Plate type ●Swivel type (with total lock) Material/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: High-gloss zinc plating ●Wheels: Polyurethane
