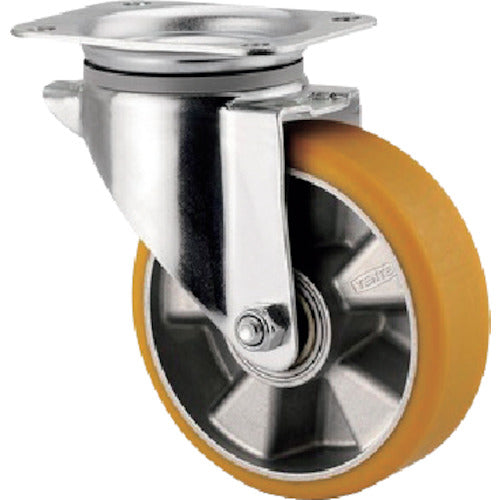

Tente Caster Plate-type Caster "ALPHA" (Urethane Wheel) φ100 Swivel 3470ITP100P62 CONVEX 1 pc

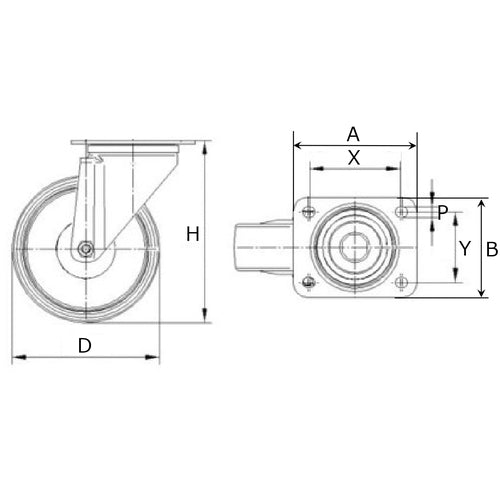

Catalog number: 3470ITP100P62 CONVEX Features: ●Double ball race bearings are used in the swivel section, making it smooth to start moving and highly durable. ●The tires are non-marking. ●The wheels are rounded, so there is less contact with the floor and less resistance, making it easy to operate. Specifications: ●Wheel diameter D (mm): 100 ●Type: Free-wheeling ●Allowable load (daN): 245 ●Allowable load (kgf): 250 ●Wheel width (mm): 40 ●Mounting height H (mm): 128 ●Mounting seat A (mm): 105 ●Mounting seat B (mm): 85 ●Mounting pitch X (mm): 80/77 ●Mounting pitch Y (mm): 60 ●Mounting hole diameter P (mm): 9 ●Plate type ●Free-wheeling Material/Finish: ●Hardware: Steel ●Hardware surface treatment: Glossy zinc plating ●Wheels: Urethane
