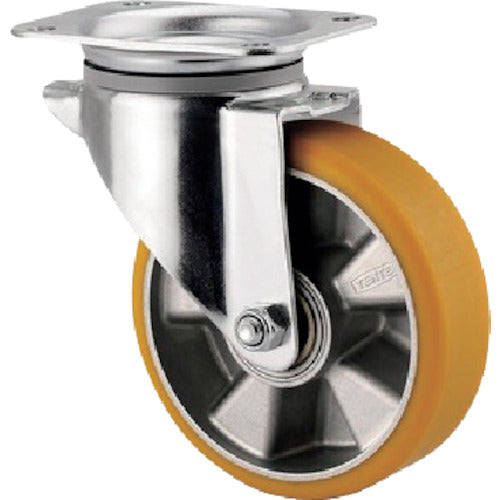

Tente Caster Plate-type Caster "ALPHA" (Urethane Wheel) φ125 Swivel 3470ITP125P63 CONVEX 1 pc

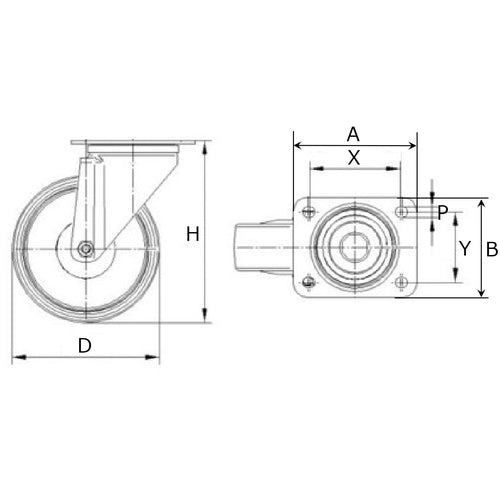

Catalog number: 3470ITP125P63 CONVEX Features: ●Double ball race bearings are used in the swivel section, which allows for smooth start-up and excellent durability. ●The tires are non-marking. ●The wheels are rounded, which reduces the contact area with the floor and reduces resistance, allowing for light operation. Specifications: ●Wheel diameter D (mm): 125 ●Type: Swivel ●Allowable load (daN): 294 ●Allowable load (kgf): 300 ●Wheel width (mm): 50 ●Mounting height H (mm): 161 ●Mounting seat A (mm): 137 ●Mounting seat B (mm): 105 ●Mounting pitch X (mm): 105 ●Mounting pitch Y (mm): 80/75 ●Mounting hole diameter P (mm): 11 ●Plate type ●Swivel type Material/Finish: ●Hardware: Steel ●Hardware surface treatment: Glossy zinc plating ●Wheels: Urethane
