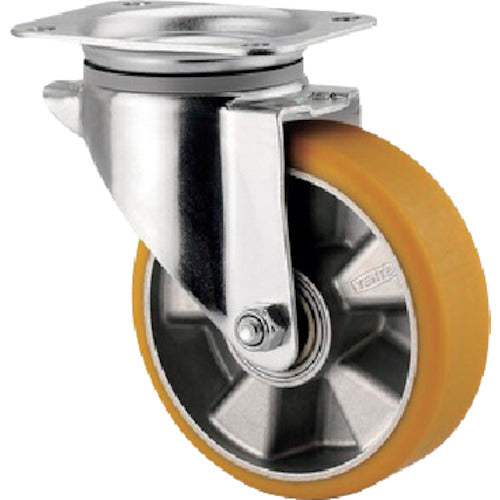

Tente Caster Plate-type Caster "ALPHA" (Urethane Wheel) φ160 Swivel 3470ITP160P63 CONVEX 1 pc

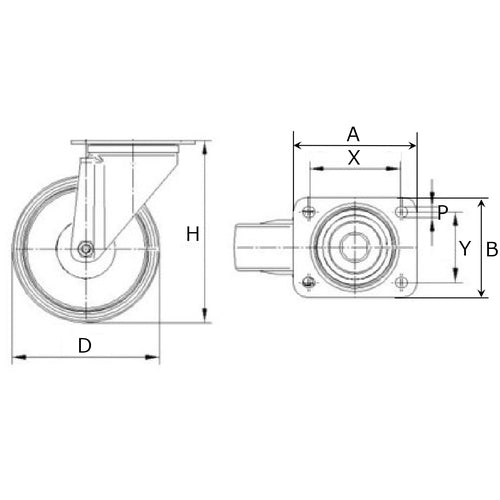

Catalog number: 3470ITP160P63 CONVEX Features: ●Double ball race bearings are used in the swivel section, making it smooth to start moving and highly durable. ●The tires are non-marking. ●The wheels are rounded, so there is less contact with the floor and less resistance, making it easy to operate. Specifications: ●Wheel diameter D (mm): 160 ●Type: Swivel ●Allowable load (daN): 343 ●Allowable load (kgf): 350 ●Wheel width (mm): 50 ●Mounting height H (mm): 200 ●Mounting seat A (mm): 137 ●Mounting seat B (mm): 105 ●Mounting pitch X (mm): 105 ●Mounting pitch Y (mm): 80/75 ●Mounting hole diameter P (mm): 11 ●Plate type ●Swivel type Materials/Finish: ●Hardware: Steel ●Hardware surface treatment: Glossy zinc plating ●Wheels: Urethane
