Tente Caster Plate-type Caster "ALPHA" (Tire-mark-less type) φ200 Fixed type 3478UFR200P63 1 piece

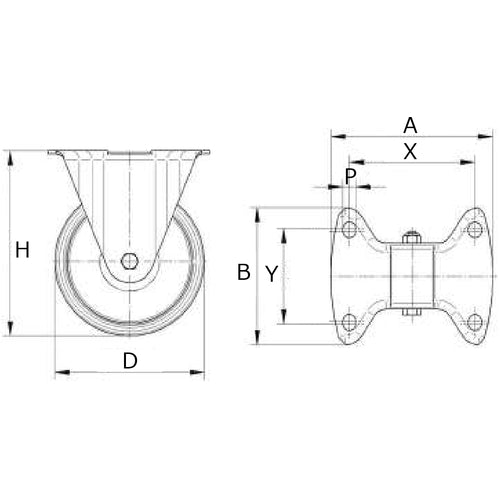

Catalog number: 3478UFR200P63 Features: ●Double ball race bearings are used in the turning section, which allows for smooth start-up and excellent durability. ●The wheels have low operating noise and are non-marking, reducing tire marks. Specifications: ●Wheel diameter D (mm): 200 ●Type: Fixed type ●Allowable load (daN): 392 ●Allowable load (kgf): 400 ●Wheel width (mm): 46 ●Mounting height H (mm): 240 ●Mounting seat A (mm): 137 ●Mounting seat B (mm): 115 ●Mounting pitch X (mm): 105 ●Mounting pitch Y (mm): 80/75 ●Mounting hole diameter P (mm): 11 ●Plate type ●Fixed type Materials/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Bright zinc plating ●Wheels: Rubber
