Tente Caster Plate-type Caster "ALPHA" (Nylon Wheel) φ100 Fixed Type 3478UOR100P62 1 pc

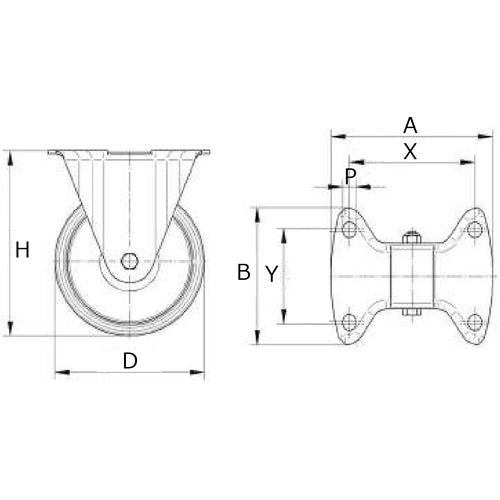

Catalogue number: 3478UOR100P62 Features: ●Double ball race bearings are used in the rotating section, which allows for smooth start-up and excellent durability. Specifications: ●Wheel diameter D (mm): 100 ●Type: Fixed type ●Allowable load (daN): 196 ●Allowable load (kgf): 200 ●Wheel width (mm): 36 ●Mounting height H (mm): 128 ●Mounting seat A (mm): 103 ●Mounting seat B (mm): 85 ●Mounting pitch X (mm): 80/77 ●Mounting pitch Y (mm): 60 ●Mounting hole diameter P (mm): 9 ●Plate type ●Fixed type Materials/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Bright zinc plating ●Wheels: Nylon
