Tente Caster Plate-type Caster "ALPHA" (Nylon Wheel) φ125 Fixed Type 3478UOR125P62 1 pc
Tente Caster Plate-type Caster "ALPHA" (Nylon Wheel) φ125 Fixed Type 3478UOR125P62 1 pc
Regular price
¥1,571
Regular price
Sale price
¥1,571
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

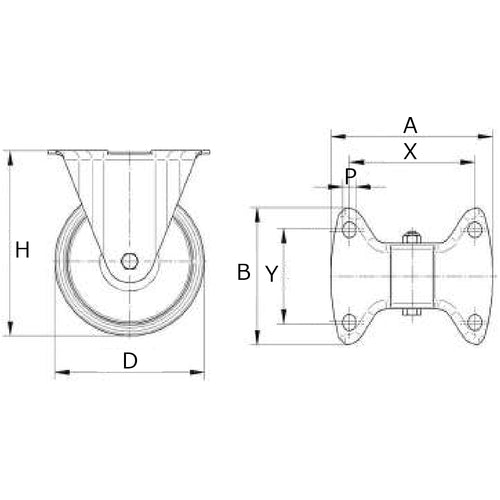

Catalogue number: 3478UOR125P62 Features: ●Double ball race bearings are used in the rotating section, which allows for smooth start-up and excellent durability. Specifications: ●Wheel diameter D (mm): 125 ●Type: Fixed type ●Allowable load (daN): 245 ●Allowable load (kgf): 250 ●Wheel width (mm): 40 ●Mounting height H (mm): 155 ●Mounting seat A (mm): 103 ●Mounting seat B (mm): 85 ●Mounting pitch X (mm): 80/77 ●Mounting pitch Y (mm): 60 ●Mounting hole diameter P (mm): 9 ●Plate type ●Fixed type Materials/Finish: ●Metal fittings: Steel ●Metal fittings surface treatment: Bright zinc plating ●Wheels: Nylon
